WTM-860i

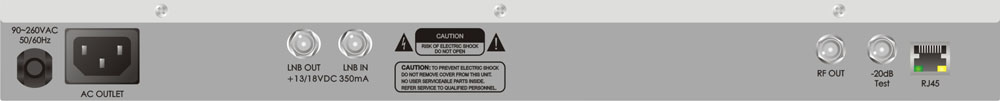

Features

Specifications

Features


Receives digital QPSK/8PSK satellite signal, and delivers one RF carrier output in QAM/COFDM/DMBT/ATSC format (optional, preset at factory)
PMT, Video/Audio PID, Service/Service Provider/Network programmable
Selectable LNB power 13/18 VDC with 22KHz tone control
Supports monitoring and setup/control thru Ethernet/LAN/RJ45
User friendly for menu/data display and setup by front plate key buttons with LCD
High MER (Modulation Error Rate) ensures a low bit error rate
CAS data Bypass (for DVB-C QAM)
NIT search (for DVB-C QAM)

  Specifications

Satellite RF Input


Frequency Range
950MHz to 2150 MHz
Input Level
-65dBm ~ -25dBm
Input Impedance
75 Ohms
Mode
DVB-S2/S, 8PSK and QPSK
VITERBI Rate

Auto Scan
DVB-S (1/2, 2/3, 3/4, 5/6, 6/7, 7/8)
DVB-S2 (1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10)

Symbol Rate
QPSK:up to 45Msps; 8PSK:up to 37Msps
DVB-S2 Roll-off
0.35, 0.25, 0.20
Input Impedance
75 Ohms
Connector
F-Type Female


LNB Power


Voltage
OFF, 13V or 18V ±10%
Current
350mA max
Tone Frequency
OFF or 22kHz
Protection
Overload protection


RF Modulation


ITU-T J.83 Annex
Annex A/B
Modulation Format (optional)
QAM/COFDM/DTMB/ATSC preset at factory
Mode
64QAM for DVB-T COFDM/ATSC/DTMB
64 QAM/256 QAM for DVB-C
Phase Noise
@1K≧70dBC; @10K≧80dBC; @10K≧90dBC
MER
34 dB typical
SNR
40 dB typical
FEC
DVB


RF Output


Frequency Range 47 MHz to 860 MHz
Bandwidth 6 / 7 / 8 MHz (NTSC, PAL-B/G/D/K/I available)
QAM Symbol Rate 4.1 ~ 7.0 Msps
Output Level +100 dBuV with 30 db adjustment
Spurious Level -55 dB typical
Out-of-band Noise -55 dB typical at 40dBm output
Frequency Stability +/- 10 KHz
Output Impedance 75 Ohms
Connector F-Type Female


Remote Control Interface

  Communication Interface Ethernet
  Electrical Interface IEEE 802.3, 10 Base-T
  Data Link Max 10Mbps
  Connector RJ 45

General

  Operating Temp. Range 0℃ ~ 50℃
  Power Requirement 90 ~ 260 VAC, 50/60Hz
  Dimension per piece 19”(L) x 2-3/4”(W) x 1-3/4”(H)
  Packing per carton 12 pcs / 20 kgs /2.35 cuft
