Product List


WAM-520 | WSP-808S

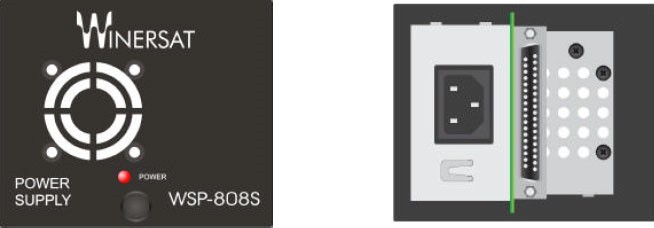

WSP-808S



General

AC Input 90-260VAC (50-60Hz)
DC Output 12V(4A) /5V(6.4A)
Protection Short Circuit & Overload
Ripple 100mVp-p(5V) / 120mVp-p(12V)
Measurement 278 (W) x 185(D) x 142(H) mm
Packing 1 Set / Inner Box, Gross weight: 0.9Kg

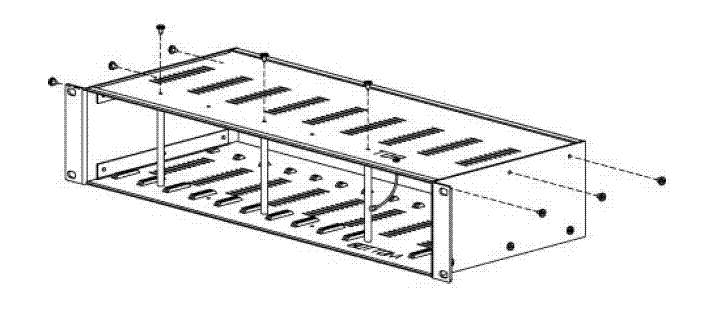

19” Rack Mount
Length 19” / Height:3.5” / Width:9”
Positions / Panel 10 slot chassis for modulator and one for power supply
