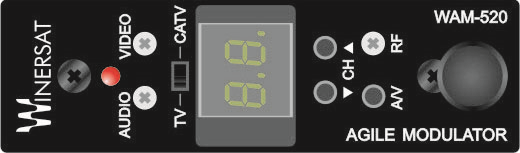

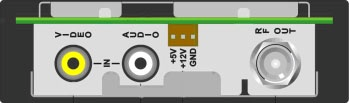

WAM-520





Specifications

RF

Frequency Range PAL-B/G 48 to 860 MHz ; PAL-D/K 48 to 860 MHz
  PAL-I 55 to 860 MHz ; NTSC 54 to 860 MHz
Output Level + 45 dBmV (minimum 15dB adjustment range
Output Impedance 75 Ohms
A / V Ratio 15dB/20dB selectable ( +/- 2dB)
Frequency Stability ± 5KHZ
Intercarrier Frequency PAL-B/G 5.5MHz ± 5KHZ ; PAL-D/K 6.5MHz ± 5KHZ
  PAL-I 6.0MHz ± 5KHZ ; NTSC 4.5MHz ± 5KHZ
Spurious Outputs -60 dBc typical measured at 15 dB A/V ratio and with
Modulator output level of +45 dBmV
C/N 60 dB Typical


VIDEO


Input Level for 87.5% Modulation 1 Vp-p. Adjustable with front panel VR control
Input Impedance 75Ohms
Frequency Response ± 1 dB (Within 5MHz)
S/N 60dB Typical


AUDIO


Input Level for 25 KHz Peak Deviation 140 mV rms. Adjustable with front panel VR control
Input Impedance Greater than 10 K Ohms , unbalanced
Pre emphasis PAL-B/G 50 μSec ; PAL-D/K 50 μSec
  PAL-I 50 μSec ; NTSC 75 μSec
Frequency Response ± 1 dB ( 40Hz to 15 KHz )


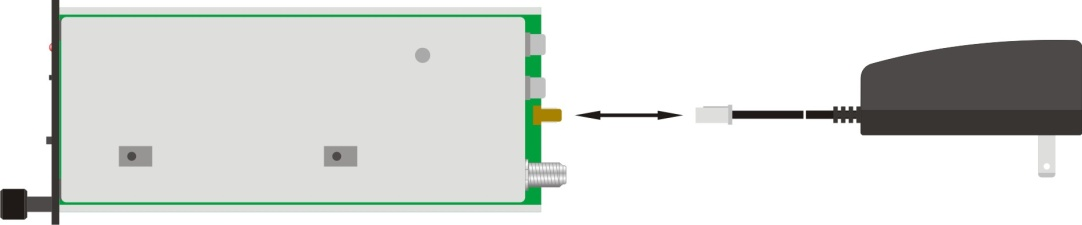

GENERAL


AC Power Input 90~260VAC,50/60Hz
DC Power Output (2U)12V / 4A , 5 V / 6.4A ; (1U) 12V / 2.6A , 5 V / 3.5A
Operating Temperature 0℃ to + 50 ℃
Size 1”W * 3.5”h * 7.5” d (2.5cm)W * (8.9cm) H * (19.1 cm )*D
Weight 0.3 Kg

Packing per set


*One complete set for 4 modules installed with 1U power supply & rack:
-One inner box for one complete set
-Five (5) complete sets (5 inner boxes), or 20 modules per carton
-One carton: 16 Kgs/ 3.2 Cuft
*One complete set for 10 modules installed with 2U power supply & rack:
-One inner foam for one complete set
-One carton for one complete set (1 inner foam)
-One carton: 8 Kgs / 1.2 Cuft
