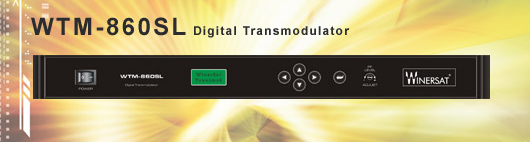

WTM-860SL

Features

Specifications

QPSK TO QAM TRANSMODULATOR


  Overview


The Winersat WTM-860SL is a professional quality, digital headend component providing QPSK to QAM transmodulation and RF upconversion functions in a single module.

The WTM-860SL accepts L-band RF inputs between 950 and 2150 MHz from the LNB at the satellite dish. The transmodulator then tunes selected satellite transponder and demodulates the QPSK signal. The forward error correction (FEC) embedded in the data stream is used to help retrieve an error free MPEG2 digital transport stream (TS) containing the desired digital programming multiplex.

The transmodulator then applies cable environment FEC to the transport stream and remodulates using QAM modulation to an IF QAM signal.

In RF upconverter, the IF QAM signal is SAW filtered and then upconverted to the desired output channel. Any standard CATV output channel may be selected in the range of 54 to 860 MHz. Bandpass flatness and phase noise are closely controlled in the WTM860 to ensure a high MER output signal. This ensures that the transmodulator will not introduce a source of errors into the distribution process. Because the MPEG2 transport stream information is not modified by the transmodulator, all encryption, authorization, and program guide information are passed on to the CATV set top box, without any changes.

Features


Operates in DVB.
Digital satellite QPSK signal input and a digital QAM signal output in 16/32/64/128
or 256 QAM mode
Front panel LCD for monitoring, data display and setup.
High MER (Modulation Error Rate) ensures a low bit error rate.
Switching power supply 90VAC-260VAC, 50Hz/60Hz.
With overload protection.
Selectable LNB power 13/18 VDC with 22kHz tone control.
Standard 19' rack-mount for installation.
SAW filtered IF out/in loop.
RF modulation output
47-864MHz output frequency agility.
60dBmV output level with Hybrid module IC.
Output level adjustable by a 15dB range.
Low out-of-band noise and High VSB attenuation.
Double PLL synthesized channel control.
Available to control multiple and daisy chain transmodulators with our Monitoring &
Control Software.




Technical Specifications

  SATELLITE QPSK RF INPUT

Frequency Range

950MHz to 2150 MHz

Input Level

-65dBm ~ -25 dBm

Input Impedance

75 Ohms

Mode

QPSK

FEC

DVB

VITERBI Rate

Auto Scan.°@°@°@°@°@°@°@°@°@°@°@°@°@°@°@ 1/2, 2/3, 3/4, 5/6, 6/7, 7/8

Symbol Rate

2Msps to 45 Msps

Input Impedance

75 Ohms

Connector

F-Type Female

  QAM MODULATION

ITU-T J.83 Annex

A (i.e. DVB)

Modulation Mode

QAM-16,32,64,128,256

Symbol Rate

1~7 MSymb/sec

Roll Off

15%

MER

°÷35 dB typical

SNR

°÷38 dB typical

Carrier Suppression

°÷55 dB typical

FEC

DVB

  CABLE RF OUTPUT

Frequency Range

47 MHz to 864 MHz

Bandwidth

6/7/8 MHz

Output Level

> 60 dBmV

Spurious Level

60 dB typical

Out-of-band Noise

60 dB typical

CNR

60 dB typical

Output Impedance

75 Ohms

Connector

F-Type Female

  LNB POWER

Voltage

OFF, 13V or 18V °”10%

Current

500mA max.

Tone Frequency

OFF or 22kHz

Protection

Overload protection

  CONTROL INTERFACE

Electrical Interface

RS-232C

Data Link

9600bps, No parity, 8-bit data, 1 stop bit

Connector type

DB-9 Male for connection to Host°@°@°@°@°@ or previous station°@°@°@°@°@°@°@°@°@°@°@°@DB-9 Female for connection to next station

  GENERAL

Operating Temperature Range

0ĘJ ~ 50ĘJ

Power Requirement

90 ~ 260 VAC, 50/60Hz

Real size of the unit

482(L)x283(W)x44(W) mm.

Packing

One set per carton box°@°@°@°@Measurement: 578(L)x375(W)x72(H) mm. Gross Weight: 3Kgs.
