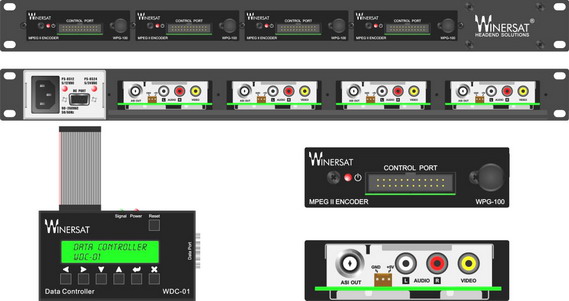

WPG-100
Features

Specifications
  MPEG-2 ENCODER

Features


Analog composite : PAL / NTSC video input
Video encoding : ISO 13818 MPEG-2 4:2:0 MP@ML
Video bitrate : 15Mbps(Max.)
Audio encoding : ISO/IEC 11172 MPEG 1 layer 2
Video and Audio synchronizer
Variable GOP
PMT / Video / Audio PID setting
Use individual Data Controller with LCD to set all system parameters
Software upgrade and data transfer via RS232
Specifications


VIDEO INPUT

‧ Input color demodulation
  -PAL


-NTSC
  -Auto-detection Type Female connector.
‧ Analog input format : CVBS(Composite Video)
‧

Programmable video controls

  -Hue


-Brightness

  -Saturation
  -Contrast
‧ Propriteary Architecture for locking to weak, noisy and unstable video sources from
VCR's, tuners etc
‧ Macrovision® copy protection detection
‧

4:2:2 to 4:2:0 colour format conversion


VIDEO ENCODING

‧

Encoding format : MPEG-2 4:2:0, MP@ML

‧

Video bitrate : 15Mbps (Max.)

‧

Bitrate control support

  -Constant bitrate (CBR)


-Variable bitrate (VBR)

‧

Dynamic parameters : GOP (Group of Pictures)

‧

Motion compensated

‧

Stream multiplexer



-Multiplexing of video and audio streams according to the MPEG-2 systems standard
  ( ISO 13818-1 )


-MPEG time stamp (PTS / DTS / SCR / PCR) generation and insertion

  (Synchronization)
‧

Output format : ASI x 1

‧

Output bitrate : 1.5~20Mbps



AUDIO ENCODING

‧

Quantification : 16 bits

‧

Sampling rate : 48 KHz

‧

MPEG-1 layer 2 audio encoding at 256 kbit/s or 384 kbit/s



CONNECTOR

‧

CVBS : RCA(female) 75 Ω

‧

Audio : L/R RCA(female)


PHYSICAL & POWER
    Dimension (W x L x H)

25 x 191 x 89 mm

    Approx. Weight 0.33 kg
    DC Power Input +5V ± 3%
    Operating Temperature Range 0 ~ 40℃
