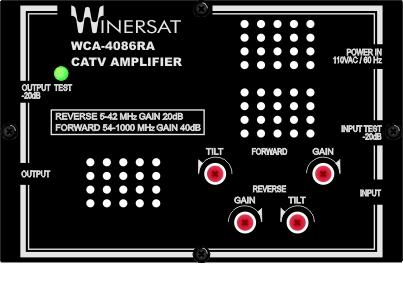

WCA-4086RA
Features
Specifications
Optional Models


Features-WCA-4086RA

Deluxe Aluminum Housing for Excellent Head-Sinking
60 dBmv High Output Level
-20 dB Input Test Point & Output Test Point
Tilt Control & Gain Control Continuously Adjustable
Built –in Power Supply For Easy Installation

Specifications

Operation Frequency Range

54~1000MHz



Output Level

60 dBmV



Gain

Typical 40 dB

Reverse Gain

 0 or 20 dB (option)


Reverse Freq 5~42 MHz

Gain Control

0 ~ -20 dB Continuously Adjustable

Tilt Control

0 ~ -20 dB Continuously Adjustable

Gain Flatness

±2.0 dB



Return Insertion Loss

≦ 4dB



Input Return Loss

≧ 10dB





Output Return Loss ≧ 10dB

Noise Figure

6.0 dB



Input & Output Impedance

75 Ω



Input & Output Test Point

-20dB



Connectors

Input, Output & Input, Output Test Point (All F-Type)

Power Supply

190V~230V AC or 110V AC

Power Consumption

9W



Operating Temperature

-10~+50 ℃



AC Fuse (Internal)

0.63Amp



Size

17.5mm(L)x134mm(W)x49mm(H)

Packing (Per Carton)

1 Set/Inner box 20 Sets/Carton/20Kgs/3.6 cuft
