WDM-210
Features

Specifications

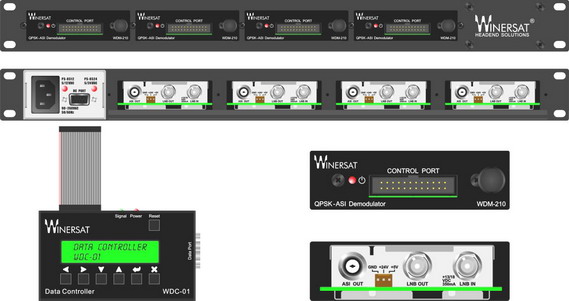

  QPSK-ASI DEMODULATOR

Features


Meet DVB-S/MPEG 2 broadcasting
User friendly FP/LED
Automatic Viterbi Puncture Rate
Automatic C or KU band adaptation
Both SCPC and MCPC compliant
DVB reception of any symbol rate from 2 to 45 MSPS
LNB loop out
LNB power 13V/18VDC and 22KHz switching capability
Use individual Data Controller with LCD to set all system parameters
Software upgrade and data transfer via RS232

Specifications


TUNER


Input Frequency : 950 ~ 2150 MHz

Input level : -65~-25 dBm

Zero I. F.

F Type Female connector.

Loop through output.



DEMODULATOR


QPSK demodulation continuously variable rate from 2 to 45 MSPS.


FORWARD ERROR CORRECTION (FEC)


Reed Solomon decoding: RS (204,188).
FEC code rates with automatic selection.


ASI OUT


188 bytes.
BNC Type connector.

PHYSICAL & POWER
    Dimension (W x L x H) 25 x 191 x 89 mm
    Approx. Weight 0.33 kg
    Power Supply +5V±3% ; +24V±5%
    Power Consumption ( maximum ) 5W
    Operating Temperature Range 0 ~ 40℃
