Product List
CodecGuard
Features

Coding/Decoding

SMS
  System Requirement


Features & Performance


Cost effective and efficient control of the Subscriber.
Control approximately six thousand receivers. Maximum one hundred thousand.
Decryption algorithms embedded into cable box with unique hardware ID.
No need to use Smart Card in system.
EMM generator will generate EMM and submit into Headend system by allocated time slot (Start time, End time), allocated RF channel and selected range of subscriber. It will not transmit the EMM to all the time.
Transmit the maximum of one thousand subscribers EMM info into allocated time slot.


Coding / Decoding

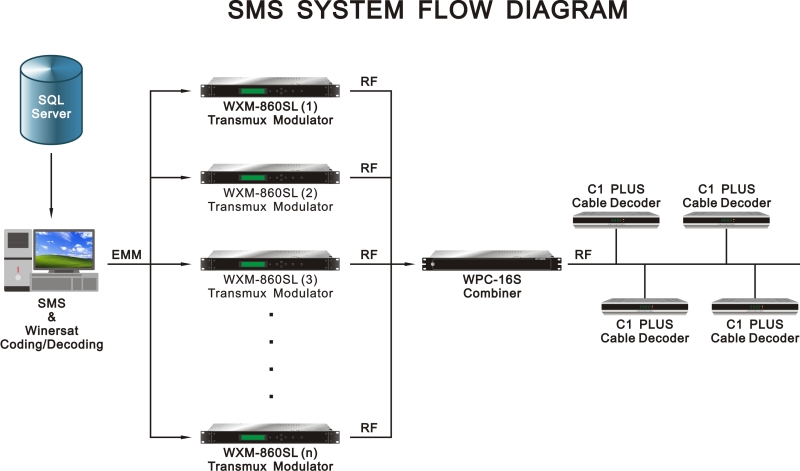

HeadEnd system will scramble the selected service elementary stream (Audio/Video/Data) information by Winersat-algorithm and then transmit to Winersat cable box. Then Winersat cable box will decode and play the scrambled service depends on subscription status of each one.

It will send the EMM (Entitlement Management Message) information from HeadEnd system to all or particular range of Winersat cable box using the receiver's Unique ID to update the Subscription status.

All services would be viewable/playable by using Winersat cable box only since each has its unique ID to identify and communicate with Headend System. Other cable boxes are unable to play this scrambled service.

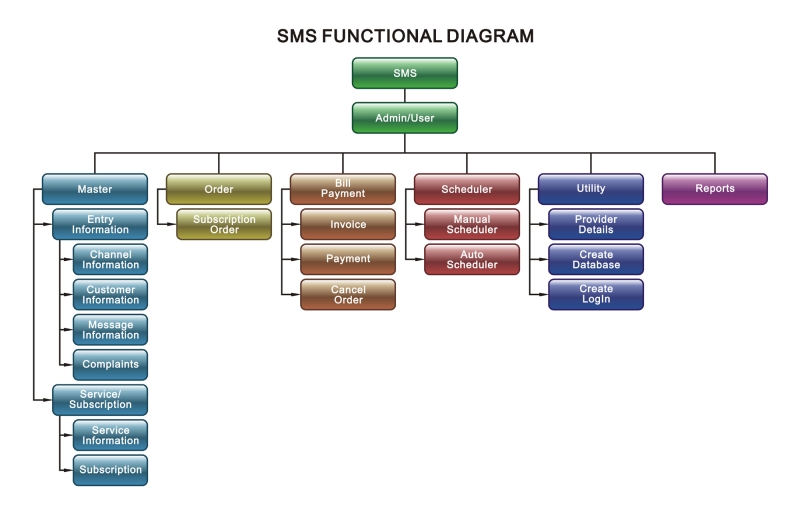

Subscription Management System (SMS)


Subscription Management System is simple and efficient system. It's involved to create the subscription type and create bouquet (set of programs) based upon the customer's demand. SMS is used in maintainingcustomer subscription orders, payment details, invoice and cancelled orders. It will generate some miscellaneous information report for the system's maintenance and has the two kind of scheduler to generate the EMM for range of selected receiver and submitted to Headend system by allocated time period (Start time and End time).





System Requirement

  Hardware

Processor

1.6 GHz or faster processor

Operating System

Windows XP (x86 & x64) with Service Pack 2 or later
Windows 7 (x86 & x64) with Service Pack 1 or later
Windows Server 2003 (x86 & x64) with Service Pack 1

RAM

384 MB of RAM or more

Display

1024 x 768 or higher-resolution display

  Ethernet

-LAN or WAN
