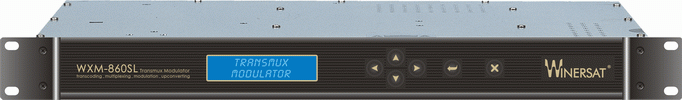

WXM-860SL Transmux Modulator


Features


4 in 1 Transmux Modulator, including ASI & DVB-S/S2 receiver, Multiplexer, QAM Modulator and RF up converter functions.
Meet DVB-S/MPEG-2 broadcasting.
Dual ASI receiver.
- Automatic incoming bit rate detection
- Automatic packet detection (188/204)
- Supports continuous and burst packet mode
Dual DVB-S receiver (optional DVB-S2).
- Supports up to 5MHz frequency drift search
- Supports wide range of symbol rate drift search
- Supports C band and Ku band
Multiplexer.
- PID filtering/edit / Delete/mapping available
- PCR correction( high precision ) available
- Supports automatic PID assignment/mapping
- User-friendly front panel interface to setup the multiplexer
- Supports network monitoring and remote control
- EIT time adjustment according to local time zone
- Supports Network Information Table (NIT) injector
- Service/service provider name can be edited
QAM Modulator.
- Supports 32/64/128/256 QAM constellation
- Supports ITU-T J.83A and B modes
- Flexible interleaver depth control in ITU-T J.83B mode
- Various IF frequency support
- High MER and low bit error rate
RF up converter.
- 47~862MHz output frequency agility
- 60 dBmV output level with Hybrid module IC
- Optional RF output by channel/frequency step (each 250 kHz)
- Low out-of-band noise and high VSB attenuation
- Double PLL synthesized channel control



Technical Specifications

  QPSK RF INPUT

Frequency Range

950MHz to 2150 MHz

Input Level

-65dBm ~ -25 dBm

Input Impedance

75 Ohms

Mode

DVB QPSK

FEC VITERBI Rate

Auto Scan. 1/2, 2/3, 3/4, 5/6, 7/8

Symbol Rate

2 Msps to 45 Msps

Input Impedance

75 Ohms

Connector

F-Type Female

  DVB-ASI INPUT

Link character length

10 bit

Bit rate on link

270 M bit/s

Useful data rate

1 M bits/s to 54 M bit/s

Max. Input Voltage

880 mV p-p

Data packet length

188 bytes or 204 bytes

Max. MPEG-2 bit rate

216 M bits/s

Connection medium

Coaxial cable

Input Impedance

75 Ohms

Connector

BNC

  QAM MODULATION


ITU-T J.83 Annex

A/B (i.e. DVB and Digicipher-II )

Modulation Mode

QAM-16, 32, 64, 128, 256

Bit Rate

54 M bit/s

Symbol Rate

1 ~ 6.95 Msps

Roll Off

15%

MER

37 dB typical

SNR

40 dB typical

Carrier Suppression

53 dB typical

FEC

ITU-T J.83A/B

Full Compliance With DVB-C ETSI/EN300 429
Phase Noise @10KHz –91 dB C
  CABLE RF OUTPUT


Frequency Range

47MHz to 862MHz

Bandwidth

7 / 8 MHz (PAL)

Output Level

≧ 60dB mV

Output Level Adjust

≧15 dB

Spurious

≧55 dB C

Out-of-band Noise

60 dB typical

CNR

60 dB typical

Frequency Accuracy/Stability

±5KHz

Output Impedance

75 Ohms

Connector

F-Type Female

  LNB POWER


Voltage

OFF, 13V or 18V ±10%

Current

500mA max

Tone Frequency

OFF or 22kHz

  CONTROL INTERFACE


Communication Interface

Ethernet

Electrical Interface

IEEE 802.3 10 Base-T/100 Base-TX

Data Link

Max 100Mbps

Connector type

RJ45

  GENERAL


Operating Temperature Range

0℃ ~ 50℃

Power Requirement

90 ~ 260 VAC, 50/60 Hz.

Real size of the unit

482(W) x 283 (D) x 44 (H) mm.

Dimensions 608(W) x328 (D) x 84(H) mm.

Packing

1 set/Inner box, Gross Weight: 3Kgs.

5 PCs/ Carton / 16Kgs/ 625 (W) x 348 (D) x 456 (H) mm /

Measurement

578(L)x375(W)x72(H)mm

Gross Weight

3Kgs.
