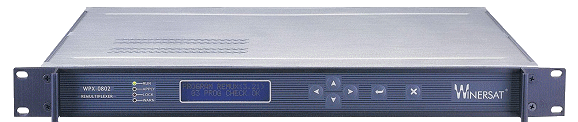

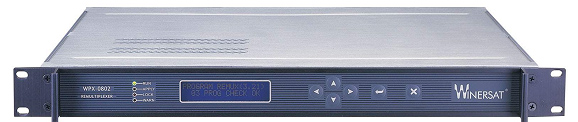

WPX-0802

Features

Specifications

Re-multiplexer


Features


Support 2 8 Input MPTS multiplexing .
Maximal bit rate of Port 1 and Port 2 input TS can be 140 Mbps
Packet length (188/204) adjust automatically
Support VBR/CBR operation mode (Packet Burst Mode)
Bit Rate of output can be adjusted from 5 to 80Mbps.
Support all PID filtrating and redefining (modifying),
also adding and deleting conveniently.
PSI generate automatically
Malfunction separating.
Statistical input bit rate adjust automatically.
Empty packet auto filling, and invariable output code rate.
High precision PCR correction(20~50ns), low time delay ( appr. 1ms ).




Specifications

  INPUT

Syntax

Single Program Transport Stream (SPTS)

/ Multiple Program Transport Stream (MPTS)

TS Code rate

1 ~ 2 Port 140Mbps/each

3 ~ 8 Port 54Mbps/each

Data packet length

188 / 204 auto adapt

Input PID range

0000 ~ 1FFF

Total Input PID

8192 x ASI input ports

Interface

DVB-ASI x 8, 75[ BNC

  Output

Syntax

Single Program Transport Stream (SPTS)

/ Multiple Program Transport Stream (MPTS)

TS bit rate

5~80Mpbs, Max. Actual data rate is 80Mpbs

Packet Format

188 / 204 can be setting (No Channel Coding)

Input PID range

0000 ~ 1FFF

Total Output PID s

65536

Interface

DVB-ASI x 2, 75[ BNC

G.703-DS3, 44.736Mbps (No Frame Format),

75[ BNC (Option)
  Interface


10 Base-T, Ethernet Network, RJ45, RS-232
