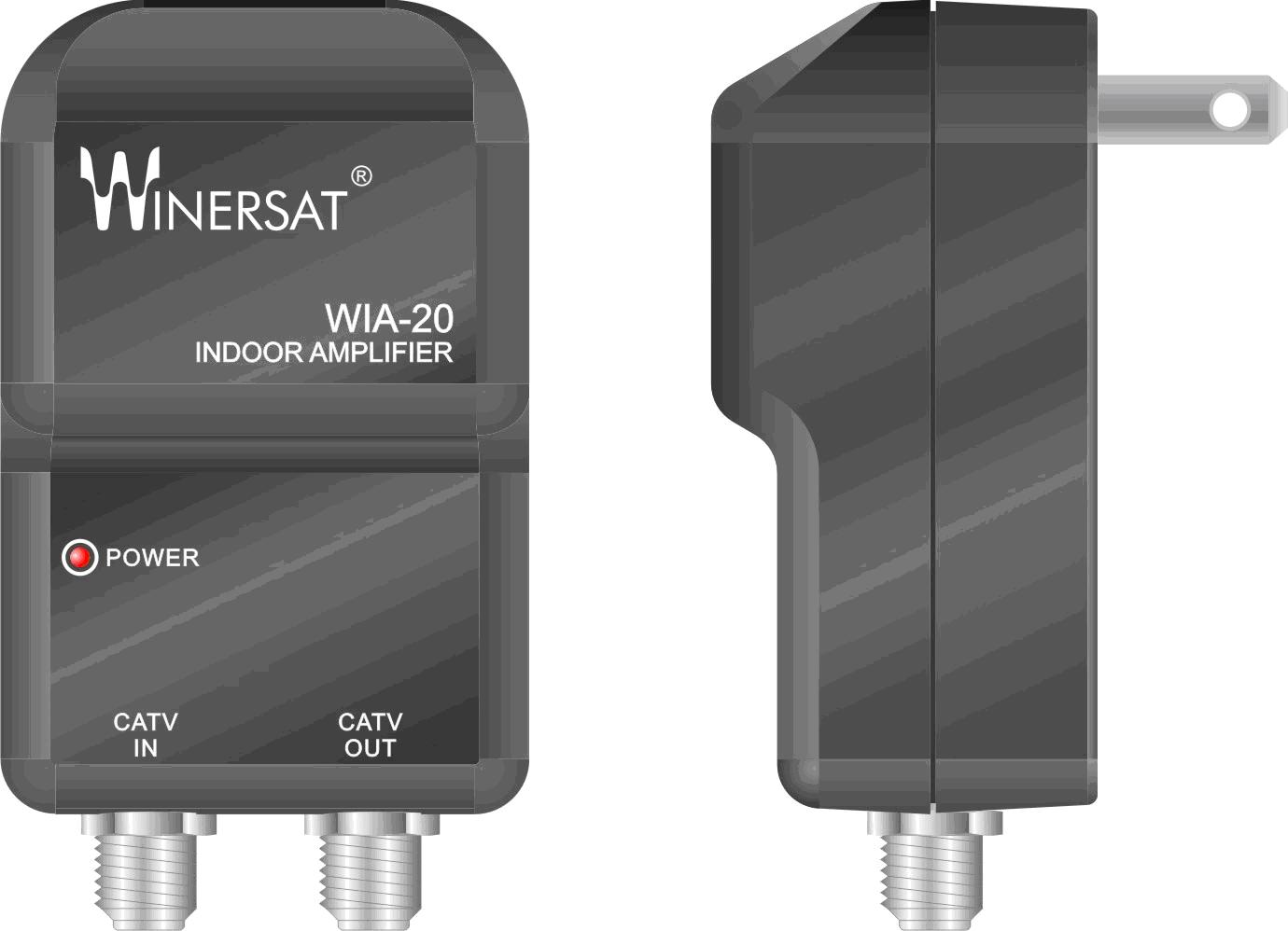

WIA-20
Features
Specifications

Features

Mini size for end users
Low Noise Figure
Fuse built-in for AC power
Specifications

Output Frequency Range

10-1000MHZ
Input Level
≦ 8dBmV
Output Level
≦ 28dBmV

Power Gain

20dB±1.5dB

Noise Figure

≦ 1.5dB

Gain Flatness

± 1.5dB

Input Return Loss (45~860MHz)

≧8dB

Output Return Loss (45~860MHz)

≧8dB
Connectors
75Ω F-Type
AC Power
AC110V(60Hz) or AC220V(50Hz) / 2.5W

Size

35mm(H) X 74mm(W) X 48mm(D)
Packing
1pc/lnner box: 50pcs/CTN/12kgs/0.6cuft
