WAM-880SL


Features


Front panel control, LED display, easy to operate
47~860MHz Output Frequency Agility
High gain output 120 dBuV, Low Spurious
With SAW filter for accurate side band response and high adjacent rejection
Adjacent channel capability
Video Modulation and Audio Deviation Level Adjustable
High VSB Attenuation
Over modulation LED indicator
Last Channel Memory
Audio pre-emphasis
2 PLL Synthesized Channel Control

Specifications

RF

Output Frequency Range 47~860 MHz Adjustable
Output Level ≧60dBmV
Output Level Range 15dB, Continuously Adjustable
V/A Carrier Power Ratio 15/20dB Selection (+/-2dB)
Spurious Harmonics 60dB typical
Output Impedance 75Ω
Frequency Accuracy/Stability Within ±5KHz (Meets F.C.C. Socket 21006 specs)
C/N ratio In Channel ≧-60dB
TV System (Optional) NTSC / PAL-B / PAL-D / PAL-I


VIDEO


Input Level 1.0Vp-p
Input type F-type, Composite Video Negative Sync
Video Frequency Response ±1dB
Modulation (Set @87.5%) 0~95% adjustable with over modulation Indicator
Input Impedance 75Ω


AUDIO


Input Level 1Vp-p for ± 30KHz Dev
Input type F-type, Composite Audio
Audio Frequency NTSC:4.5±1KHz above Video / PAL-D:6.5 ± 1KHz above Video / PAL-B:5.5MHz ± 1k above video / PAL-I: 6.0 ± 1KHz above Video
Audio Frequency Response ±1dB
Input impedance Hi impedance
Pre-emphasis 50 μSec；75 μSec (NTSC)
Modulation ~25KHz±2KHz adjustable with over modulation Indicator


GENERAL


Power Requirement 90~260V AC 50/60Hz
Temperature Range 0~50℃

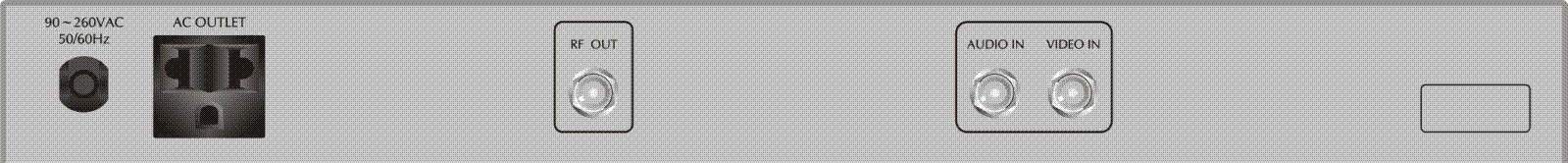

Rear Panel Connectors F type for Video/Audio In, RF out
Dimensions 19”(L)x8.1”(W)x1.75”(H)
Packing 1 Set/Inner Box , 5 Set/Carton/11kgs/2.8 cuft
