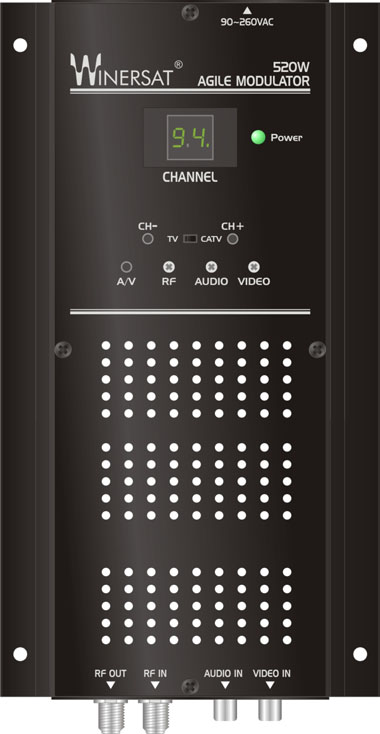

  Wall-mounted Agile Modulator

Features


Wall-mounted type design for flexible installation
Deluxe aluminum chassis for excellent heat-sink
LED for channel number and power indication
Full band 45-860MHz for channels agile
Single side band professional design
With SAW filter, PLL device and CPU control
RF Test/IN port to combine RF signal
105dB RF gain output (120dB optional)
90~260 VAC professional low ripples SMPS

Specifications


RF

‧ Frequency Range PAL-B/G 48-860MHz ; PAL-D/K 48-860MHz
  PAL-I 55-860MHz ; NTSC 54-860MHz
‧ Output Level + 45 dBmV (minimum 15dB adjustment range.)
‧ Output Impedance 75 Ohms
‧ A / V Ratio -9~-30dB continuously adjustable
‧ Frequency Stability ± 5KHZ
‧ Inter carrier Frequency PAL-B/G 5.5 ± 5KHZ ; PAL-D/K 6.5 ± 5KHZ
    PAL-I 6 ± 5KHZ ; NTSC 4.5 ± 5KHZ
‧ Spurious Outputs -60 dBc typical measured at 15 dB A/V ratio and with Modulator output level of +45 dBmV
‧ C/N 60 dB Typical

VIDEO

‧ Input Level for 87.5% Modulation 1 Vp-p. Adjustable with front panel VR control
‧ Input Impedance 75Ohms
‧ Frequency Response ± 1 dB (Within 5MHz)
‧ S/N 60dB Typical

AUDIOl


‧ Input Level for 25 KHz Peak Deviation 140 mV rms. Adjustable with front panel VR control
‧ Input Impedance Greater than 10 K Ohms , unbalanced
  Pre emphasis PAL-B/G 50 μSec ; PAL-D/K 50 μSec
    PAL-I 50 μSec ; NTSC 75 μSec
‧ Frequency Response ± 1 dB ( 40Hz to 15 KHz )

GENERAL


‧ AC Power Input 90~260VAC,50/60Hz
‧ Operating Temperature 0℃ to + 50 ℃
‧ Size 24.5cm(W) * 13.4cm(H) * 4.8cm(D)
‧ Weight 1.33 Kg
