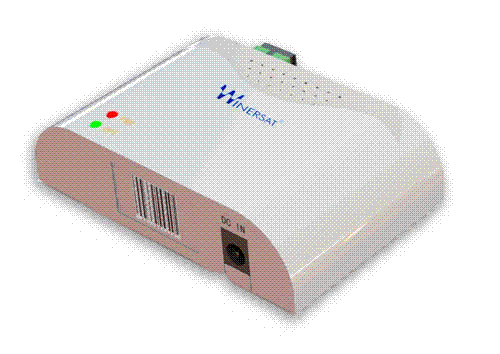

WOR-100 FTTH

Optical Receiver

	Features
	Optional receiving range: -2 ~ -10dBm, -2 ~ -12dBm -2 ~ -15dBm, -2 ~ -18dBm Optical AGC Optional RF output level: H: 75~80dBuV, M: 70~75dBuV, L: 65~70dBuV Power supply and optical power LED indicator on panel Unique heat dissipation design to ensure a stable working Compact size for convenient installation

SPECIFICATIONS

Optical

Wavelength	1210~1610nm
Input Optical Power	-2 ~ -10dBm	WOR-100-0
	-2 ~ -12dBm	WOR-100-2
	-2 ~ -15dBm	WOR-100-5
	-2 ~ -18dBm	WOR-100-8
Fiber Connector	SC/APC or FC/APC
Optical Return Loss	≧45 dB

RF

Bandwidth	47~1000MHz
RF Connector	F type
Nominal Output Level	H:75~80dBuV	WOR-100-0 ; WOR-100-2
	M:70~75dBuV	WOR-100-0 ; WOR-100-2 WOR-100-5
	L:65~70dBuV	WOR-100-0 ; WOR-100-2 WOR-100-5 ; WOR-100-8
RF Output Resistance	75Ω
RF Flatness	±1d
RF Return Loss	≧14dB
C/N *	≧43dB
C/CSO *	≧62dB
C/CTB *	≧65dB
MER	≧29dB (-15dBm Input Optical Power)
*Remark: -8dBm optical receiving power, 59 PAL + 320MHz digital channel

General

Power Supply	100~240V AC, +12V DC
Power Consumption	＜2.4W
Working Temperature	0 ~ +40℃
Dimension	95×60×24 mm
