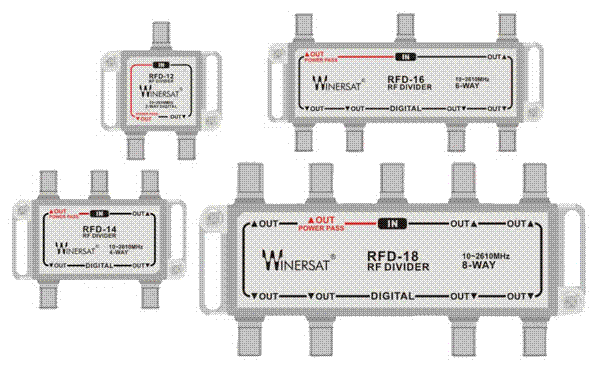

RF DIVIDER

	Features
	High-End Technology for Digital & Analog RF signals Excellent Performance with High-Tech Design Reliable Quality with Gold-Coated Pins Output Impedance ：75Ω Grounding Terminal Available 10-2610 MHz Available

SPECIFICATIONS

IMPEDANCE: ALL PORTS 75 Ω

CONNECTOR: ALL PORTS 3/8*32 UNEF F FEMALE

POWER PASSING: 15V DC 0.8A Max. IN<->OUT(ONE PORT)

RFD-12 for 2-way
FREQ RANGE	(MHZ)	10-76	76-250	250-770	770-1336	1336-2150	2150-2610
IN-OUT INSERTION	(dB)	≦ 4.3	≦ 3.8	≦ 4	≦ 4.5	≦ 5.5	≦ 6.5
IN. OUT ISOLATION	(dB)	≧ 16	≧ 25	≧ 21	≧ 17	≧ 15	≧ 15
IN. OUT VSWR		≦ 2.5	≦ 1.8	≦ 1.8	≦ 2	≦ 2	≦ 2.5

RFD-14 for 4-way
FREQ RANGE	(MHZ)	10-76	76-250	250-770	770-1336	1336-2150	2150-2610
IN-OUT INSERTION	(dB)	≦ 8	≦ 8	≦ 8	≦ 9	≦ 10.5	≦ 12
IN. OUT ISOLATION	(dB)	≧ 21	≧ 25	≧ 20	≧ 17	≧ 15	≧ 15
IN. OUT VSWR		≦ 2.5	≦ 1.8	≦ 1.8	≦ 2	≦ 2	≦ 2.5

RFD-16 for 6-way
FREQ RANGE	(MHZ)	10-76	76-250	250-770	770-1336	1336-2150	2150-2610
IN-OUT INSERTION	(dB)	≦ 10.5	≦ 10	≦ 10.3	≦ 11.5	≦ 14	≦ 16
IN. OUT ISOLATION	(dB)	≧ 18	≧ 21	≧ 21	≧ 17	≧ 15	≧ 15
IN. OUT VSWR		≦ 2.5	≦ 1.8	≦ 1.8	≦ 2	≦ 2	≦ 2.5

RFD-18 for 8-way
FREQ RANGE	(MHZ)	10-76	76-250	250-770	770-1336	1336-2150	2150-2610
IN-OUT INSERTION	(dB)	≦ 11.5	≦ 11	≦ 11.8	≦ 13	≦ 16	≦ 18
IN. OUT ISOLATION	(dB)	≧ 21	≧ 21	≧ 21	≧ 15	≧ 15	≧ 15
IN. OUT VSWR		≦ 2.5	≦ 1.8	≦ 1.8	≦ 2	≦ 2	≦ 2.5
