S2 Super |
|
|
| |
HD SATELLITE RECEIVER |
| |
|
 |
|
|
|
|
|
|
 |
SYSTEM |
|
|
|
CPU/Decoder |
Montage |
|
|
|
Flash Memory |
4M Bytes |
|
|
|
SDRAM |
64M Bytes DDR2 |
|
|
|
Tuner and Demodulator |
|
|
|
Tuner |
Montage |
|
|
|
Demodulator |
Embedded |
|
|
|
Input Connector |
F-type, IEC 169-24, Female |
|
|
|
Loop Out |
F-type, IEC 169-24, Female |
|
|
|
Frequency Range |
950MHz~2150MHz |
|
|
|
Modulation Format |
QPSK, 8PSK, 16APSK, 32APSK |
|
|
|
Input Symbol Rate |
1~45 MSp |
|
|
|
FEC |
1/4, 1/3, 2/5, 3/5, 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
|
MPEG Transport Stream & A/V Decoding |
|
|
|
Video Decoding |
MPEG-4 Simple Profile, Advanced Simple Profile @ Level 5 without GMC/Data Partitioning/Reversible VLC;
ISO/IEC 13818-2, MPEG-2 MP@ML; H.264 BP (with no ASO/FMO), MP&HP@L4.1;
AVS Jizhun profile @ L6.1/4.0/2.0 |
|
|
|
Audio Decoding |
MPEG-1/2 Layer I/II/III
MPEG-2/4 LC-AAC,
MPEG-4 HE-AAC@Level 4 |
|
|
|
Audio Mode |
Single Channel /Dual Channel/Joint Stereo / Stereo |
|
|
|
Sampling Rate |
16,22.05,24,32,44.1KHz and 48KHz |
|
|
|
Multimedia Format Supported |
|
|
|
Video |
flv,3gp,mp4,mpg, mpeg,ts,trp,avi |
|
|
|
Audio |
MP3 |
|
|
|
Photo |
JPG,JPEG,BMP,PNG,GIF |
|
|
|

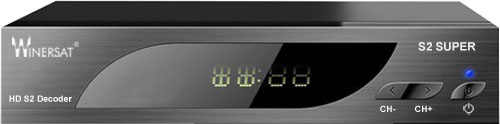

FRONT PANEL |
|
|
|
IR Receiver |
38KHz, NEC format |
|
|
|
Indicators |
2 LEDs |
|
|
|
Buttons |
3 Buttons(Standby, CH, UP / DOWN) |
|
|
|
Slot |
NONE |
|
|
|
Display |
LED-Array(Optional) |
|
|
|

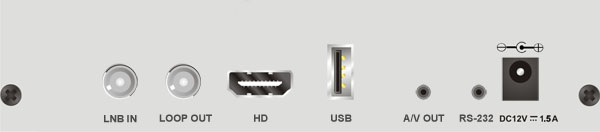

REAR PANEL |
|
|
|
RF Input |
F-Type |
|
|
|
Loop Out |
F-Type |
|
|
|
USB |
USB 2.0 Host Support |
|
|
|
RCA |
Video Output (CVBS)
Audio R/L (volume &Mute control) |
|
|
|
HD Output |
480i/p, 576i/p, 720p, 1080i/p |
|
|
|
|
POWER SUPPLY |
|
|
|
Input Voltage |
DC12V/1. 5A |
|
|
|
Adapter Input |
100-240V AC, 50Hz~60Hz |
|
|
|
Power |
Max. 15W |
|
|
|
consumption(USB) |
|
|
|
|
Stand-by consumption |
Max.1W |
|
|
|
PHYSICAL SPECIFICATION |
|
|
|
Size(W x D x H) |
168mm x 116mm x 36mm |
|
|
|
Operating Temp |
0 ℃ - +45℃ |
|
|
|
Storage Temperature |
-40℃ - +65℃ |
|
|
|
|
|
|
