C2 Super |
|
| |
CABLE DECODER |
| |
|
 |
|
|
 |
Features |
| |
 Digital Cable Receiver DVB-C, HD/SD
Support Winersat CodecGuard system
USB 2.0 Host Support (PVR,MP3 Player &Picture Viewer)
Recording & Playback with External USB 2.0 Devices
Time Shift with External USB 2.0 Devices
Recording and Time Shift Simultaneously
Support EPG (Electronic Program Guide),Event Recording by EPG
H.264, MPEG-2/4, Fully DVB Compliant
On-Screen Display with 16 bit Color Full Resolution
Favorite Service Groups
Powerful Service Control by Favorites, Lock, Skip, Move, Rename and Delete
Service Sorting by LCN, Service ID, Network ID and Service Name
Multi-Language Supported (OSD & Menu)
Teletext ,Subtitle Support *Dolby AC-3 Optional
Maximum 1000 Services Programmable
Multi-picture Display
Parental Lock
Software & Services Database Transfer via USB
|
|
|
|
|
Specifications |
| |
|
Tuner & Channel |
| |
| ‧ |
Input Connector |
F-Type,IEC 169-24,Female |
| ‧ |
Loop through out |
IEC 169-1,Male |
| ‧ |
Frequency Range |
50MHz -862MHz |
| ‧ |
Demodulation |
QAM |
| ‧ |
Input Symbol Rate |
1-7 Msp/s |
| ‧ |
Bandwidth |
7,8 MHz |
| ‧ |
Modulation Format |
16,32, 64,128, 256QAM |
|
|
Transport Stream AIV Decoding |
| |
| ‧ |
Transport Stream |
MPEG-2 1SO/IEC 13818, ITU-T H.264 MPEG-41SO/IEC |
| ‧ |
Profile Level |
MPEG-2 MP@ML, H.264 Main Profile and High Profile@Level4.0 |
| ‧ |
Input Rate |
Max. 20Mbit/s |
| ‧ |
VIdeo Resolution |
480i/p,576i/p,720p,1080i,1080p |
| ‧ |
VIdeo Format |
4:3 , 16:9 |
| ‧ |
Audio Decoding |
MPEG-1, MPEG-2(Layer I & II), MP3,AC-3,DD+,AAC-LC,HE-AAC |
| ‧ |
Audio Mode |
Stereo/Joint, Stereo/Mono |
| ‧ |
Sampling Rate |
16, 22.05,24,32,44.1K,48KHz |
| ‧ |
Physical |
Size 170Wx115Dx32H mm |
| ‧ |
Operating Temp |
0℃ ~ +45℃ |
|
|
Main System |
| |
| ‧ |
Memory |
FLASH-ROM 4MBytes |
|
|
DDR3 128MBytes |
|
|

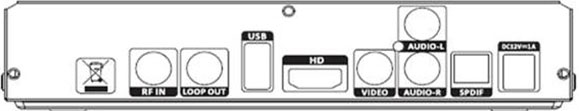

Audio / VIdeo & Data IN/OUT |
| |
| ‧ |
RCA |
CVBS Video, Audio L, R Output |
| ‧ |
USB |
USB 2.0 Host Support |
| ‧ |
HDMI |
1.3 transmitter or HDCP |
|
|
Front Panel |
| |
| ‧ |
Buttons |
Standby, CH up, CH down |
| ‧ |
LED Indicators |
Standby: RED, Working: GREEN |
| ‧ |
Slot |
1 Smart Card Slot (optional) |
|
|
Supported Multimedia Format |
| |
| ‧ |
Video |
mpg,mpeg,dat,ts,trp,tp,m2ts,m2t1,vob,
mov,rmvb,rm,mkv,avi,flv,3gp |
| ‧ |
Audio |
MP3,OGG,AC3,M4A/AAC,WMA/ASF |
| ‧ |
Photo |
JPG,JPEG,JPE,BMP,PNG |
|
|
Power Supply |
| |
| ‧ |
Input Voltage |
DC 12V/1A, 12W max |
| ‧ |
Type |
SMPS |
| ‧ |
Protection |
Internal Fuse & Lighting protection |
|
|
|
|
|
|
|
|
|
|
|
|
