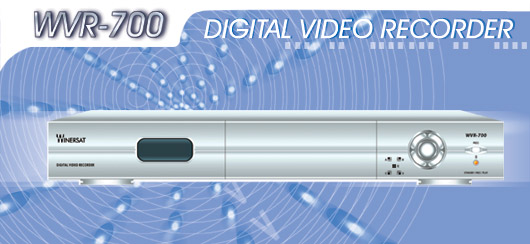

WVR-700

Features
Specification

Features


Simple OSD Menu
Direct Control From Face Panel
RTOS (Real Time Operation System), Fast Booting, Virus-free
Real Time 1-Channel (120fps) or 4-Channel Monitoring, Recording (30fps)
Recording Time: 18 ~ 1680 Hrs (40GB HDD, High ~ Basic Resolution)
Auto Detect IDE HDD and Format, Support Upto 120GB HDD
Recording Video Quality：Basic、Normal、High
Recording Mode：Event、Continues
4 Alarm Sensors Input&1 Alarm Output
Overwrite Enabled：Overwrite previous recording when HDD is full
Diverse Play Mode：Pause、1X、2X、3X、4X Fast Forward and Backward
Password access for better security
Over Current Protection and Rebooting
Specifications


ITEM

DESCRIPTION

Video Input Format

NTSC / PAL

Video Input Channel

4 channels Composite

Video Output Channel

Single channel output

Display Frame

NTSC /120 fields/s (4CH x 30 fields/s)

PAL /100 fields/s (4CH x 25 fields/s)

Recording Frame Rate

(QUAD MODE)

NTSC (QUAD) / Max. 30 fields/s

PAL (QUAD) / Max.25 fields/s

Recording Frame Rate

(EACH MODE)

NTSC (EACH) / Max. 7.5 fields/s

PAL (EACH) / Max. 6.25 fields/s

Recording Mode

Continuous ， Manual ， Event ， Programmed

Resolution

Display

NTSC / 720 x 480

PAL / 720 x 576

Recording

NTSC / 320 x 112, 640 x 224

PAL / 320 x 136, 640 x 272

Compression Format

Modified MJPEG (12-20K bytes/ frame)

HDD

Support upto 120GB

Temperature Range

+5 ℃ ~ +50 ℃

Dimensions

430mm (L) x 220mm (W) x360 mm(H)

Weight

2.8 Kgs

Measurement 3.38cuft / 14.5Kgs
